Middleware: PatchToolCalls

adk/middlewares/patchtoolcalls

💡 The PatchToolCalls middleware is used to fix “dangling tool calls” issues in the message history. This middleware was introduced in v0.8.0.Beta.

Overview

In multi-turn conversation scenarios, there may be cases where an Assistant message contains ToolCalls, but the corresponding Tool message response is missing from the conversation history. Such “dangling tool calls” can cause some model APIs to throw errors or produce abnormal behavior.

Common scenarios:

• User sent a new message before tool execution completed, causing the tool call to be interrupted
• Some tool call results were lost when restoring a session
• User canceled tool execution in a Human-in-the-loop scenario

The PatchToolCalls middleware scans the message history before each model call and automatically inserts placeholder messages for tool calls that lack responses.

Quick Start

import (
    "context"
    "github.com/cloudwego/eino/adk"
    "github.com/cloudwego/eino/adk/middlewares/patchtoolcalls"
)

// Create middleware with default configuration
mw, err := patchtoolcalls.New(ctx, nil)
if err != nil {
    // Handle error
}

// Use with ChatModelAgent
agent, err := adk.NewChatModelAgent(ctx, &adk.ChatModelAgentConfig{
    Model:       yourChatModel,
    Middlewares: []adk.ChatModelAgentMiddleware{mw},
})

Configuration Options

type Config struct {
    // PatchedContentGenerator custom function to generate placeholder message content
    // Optional, uses default message if not set
    PatchedContentGenerator func(ctx context.Context, toolName, toolCallID string) (string, error)
}

func(ctx, toolName, toolCallID string) (string, error)

Default Placeholder Message

If PatchedContentGenerator is not set, the middleware uses a default placeholder message:

English (default):

Tool call {toolName} with id {toolCallID} was cancelled - another message came in before it could be completed.

Chinese:

工具调用 {toolName}（ID 为 {toolCallID}）已被取消——在其完成之前收到了另一条消息。

You can switch languages via adk.SetLanguage().

Usage Examples

Custom Placeholder Message

mw, err := patchtoolcalls.New(ctx, &patchtoolcalls.Config{
    PatchedContentGenerator: func(ctx context.Context, toolName, toolCallID string) (string, error) {
        return fmt.Sprintf("[System Notice] Tool %s execution was skipped (Call ID: %s)", toolName, toolCallID), nil
    },
})

Combined with Other Middlewares

// PatchToolCalls should usually be placed at the front of the middleware chain
// to ensure dangling tool calls are fixed before other middlewares process messages
agent, err := adk.NewChatModelAgent(ctx, &adk.ChatModelAgentConfig{
    Model: yourChatModel,
    Middlewares: []adk.ChatModelAgentMiddleware{
        patchToolCallsMiddleware,  // Fix messages first
        summarizationMiddleware,   // Then summarize
        reductionMiddleware,       // Finally reduce
    },
})

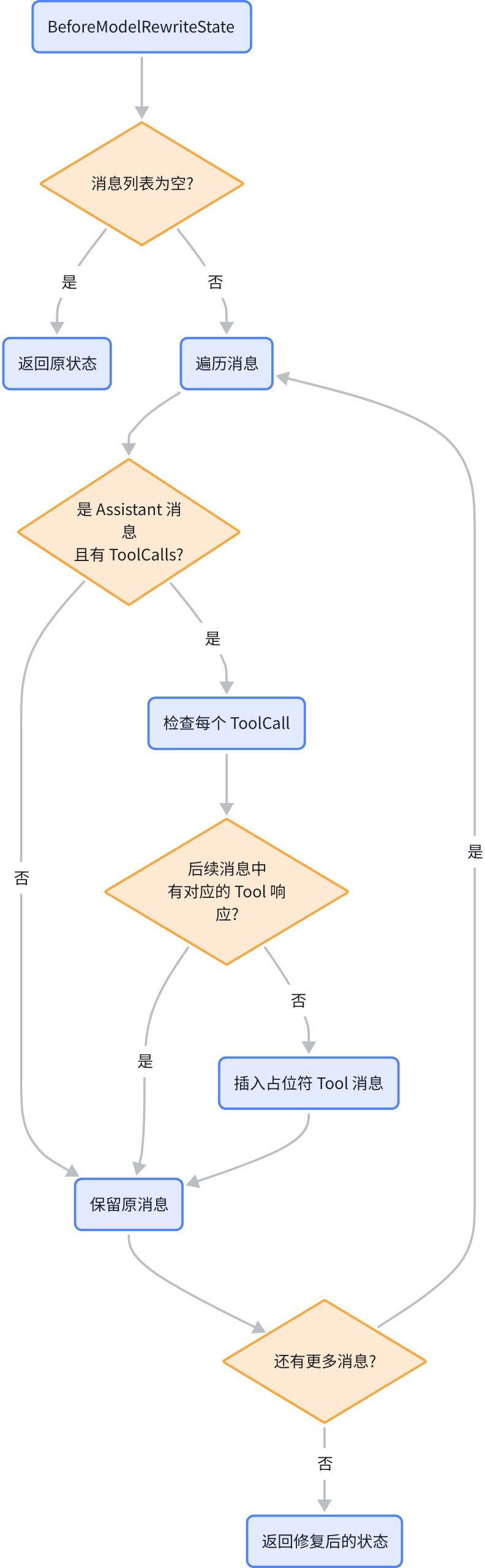

How It Works

Processing Logic:

1. Executes in the BeforeModelRewriteState hook
2. Iterates through all messages to find Assistant messages containing ToolCalls
3. For each ToolCall, checks if a corresponding Tool message exists in subsequent messages (matched by ToolCallID)
4. If no corresponding Tool message is found, inserts a placeholder message
5. Returns the repaired message list

Example Scenario

Message History Before Repair

[User]     "Help me check the weather"
[Assistant] ToolCalls: [{id: "call_1", name: "get_weather"}, {id: "call_2", name: "get_location"}]
[Tool]     "call_1: Sunny, 25°C"
[User]     "No need to check the location, just tell me Beijing's weather"   <- User interrupts

Message History After Repair

[User]     "Help me check the weather"
[Assistant] ToolCalls: [{id: "call_1", name: "get_weather"}, {id: "call_2", name: "get_location"}]
[Tool]     "call_1: Sunny, 25°C"
[Tool]     "call_2: Tool call get_location (ID: call_2) was cancelled..."  <- Automatically inserted
[User]     "No need to check the location, just tell me Beijing's weather"

Multi-language Support

Placeholder messages support both Chinese and English, switch via adk.SetLanguage():

import "github.com/cloudwego/eino/adk"

adk.SetLanguage(adk.LanguageChinese)  // Chinese
adk.SetLanguage(adk.LanguageEnglish)  // English (default)

Notes

💡 This middleware only modifies the history messages for the current run in the BeforeModelRewriteState hook, and does not affect the actual stored message history. The repair is temporary and only used for the current agent call.

• It’s recommended to place this middleware at the front of the middleware chain to ensure other middlewares process a complete message history
• If your scenario requires persisting the repaired messages, implement the corresponding logic in PatchedContentGenerator
